Automatic HD Tyre Inflation Cage (198 cm)

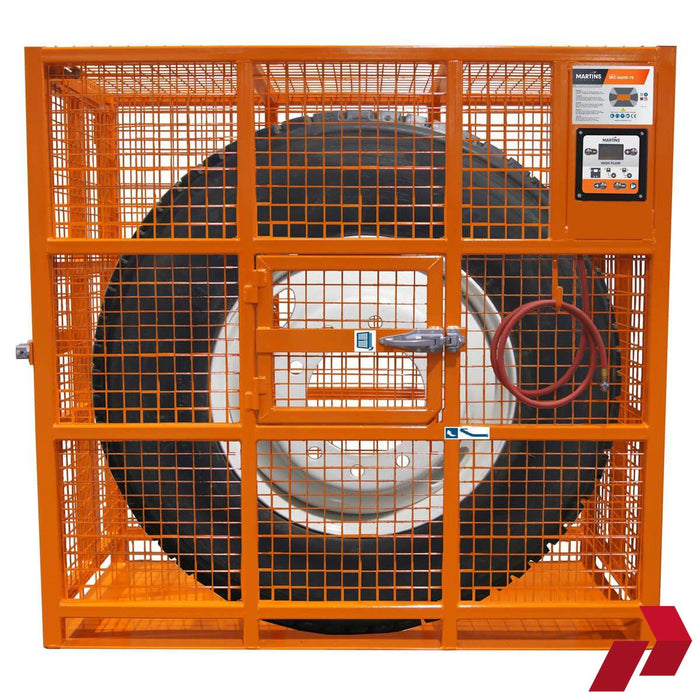

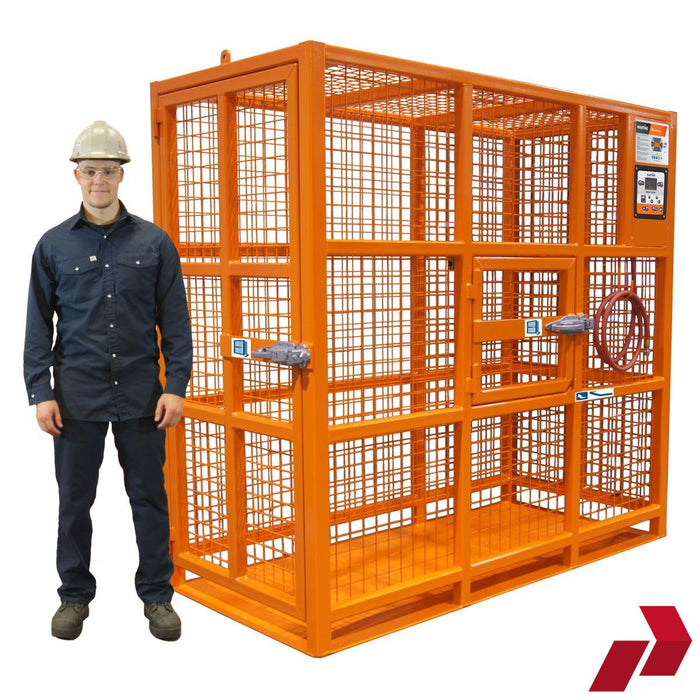

The Automatic HD Tyre Inflation Cage 1.98m OD provides top-of-the-line protection for operators when inflating or deflating truck & bus, agricultural, and off-the-road tyres. Designed to keep users safely out of harm’s way, this heavy-duty cage allows tyres to be inflated or deflated automatically while maintaining a safe distance during operation.

This safety tyre inflation cage is equipped with dual door safety systems, locks, and safety valves that activate and deactivate the inflation or deflation process depending on door position. Built with steel wire mesh walls, it offers robust protection against large fragments in the event of a tyre explosion. Fully compliant with CE and DGUV – BGR 157 requirements, the Automatic HD cage delivers safety, accuracy, and ease of use through its plug & play automatic tyre inflator with an integrated over-pressure system.

Key Features

• Automatic inflation and deflation – inflate or deflate tyres while remaining safely outside the danger zone.

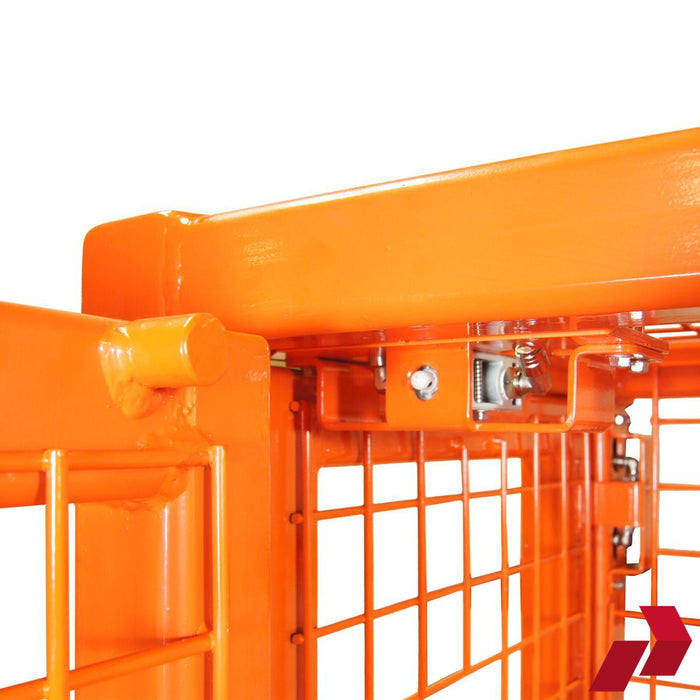

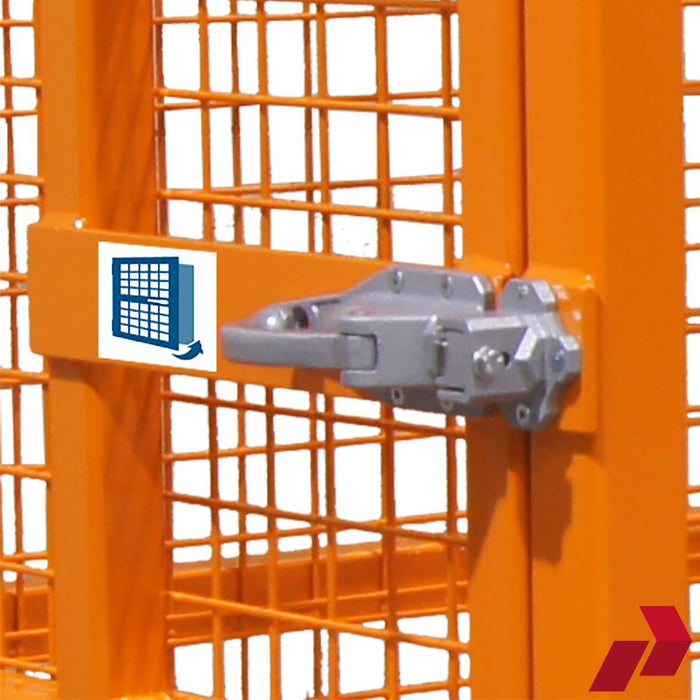

• Dual safety door system – inflation and deflation only operate when doors are fully closed.
• Heavy-duty wire mesh protection – steel mesh walls help shield operators from large debris during tyre failure.
• High capacity – suitable for tyres up to 193 cm outer diameter and 89 cm wide.
• High pressure capability – certified for tyre pressures up to 10 bar.

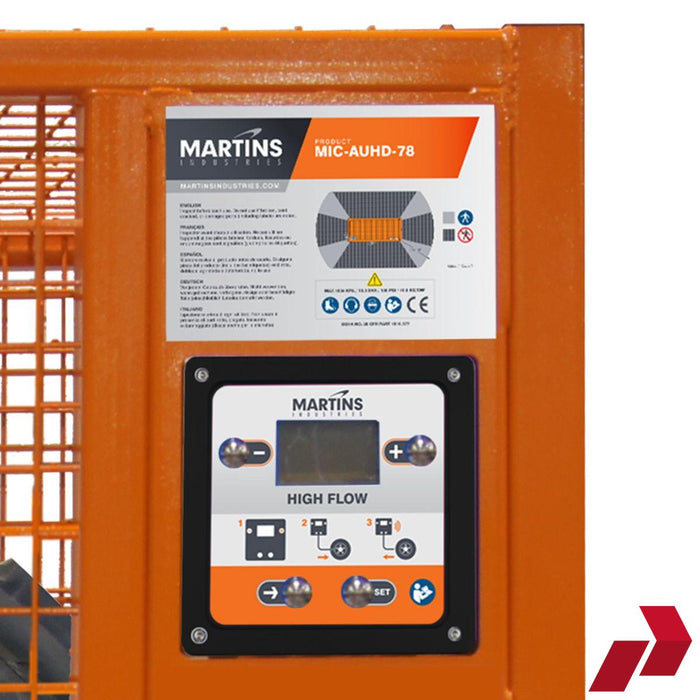

• Plug & play inflator – built-in automatic tyre inflator with over-pressure protection for accurate inflation.
• Compliant & reliable – meets CE, DGUV – BGR 157, and OSHA 29 CFR 1910.177 requirements.
• Durable construction – powder-coated steel design for long-lasting durability in demanding environments.
• Warranty – supplied with a 1-year manufacturer’s warranty.

Specifications

• Max Inflation Pressure – 10 bar
• Tyre Diameter – Up to 193 cm OD
• Tyre Width – Up to 89 cm
• Tyre Capacity – 1
• Tyre Types – Truck & Bus tyres, OTR tyres
• Included – Automatic tyre inflator (10 bar – 3600 L/min / 128 CFM), 3 m air hose with OTR chuck, 1/2" industrial quick coupling, safety information & procedures sticker, user manual
• Autocalibration – Yes (on every unit start)
• Reading Accuracy – 0.29 psi / 0.02 bar
• Air Compressor Required – Yes
• Compliance – CE, DGUV – BGR 157, OSHA 29 CFR 1910.177
• Material – Steel
• Finish – Powder Coated
• Colour – Orange
• Dimensions (L x W x H) – 208 x 102 x 200 cm
• Package Dimensions (L x W x H) – 231 x 130 x 216 cm
• Net Weight – 503 kg
• Hose Length – 300 cm
• Hose Quantity – 1
• Chuck Type – Open
• Warranty – 1 Year

Air compressor required. The unit does not generate compressed air and must be connected to a suitable external air supply.

Inflation will only begin once the cage doors are fully closed. Any modification to the inflator or chuck type may void certification and warranty.

Before using the product, please read the instructions carefully.
