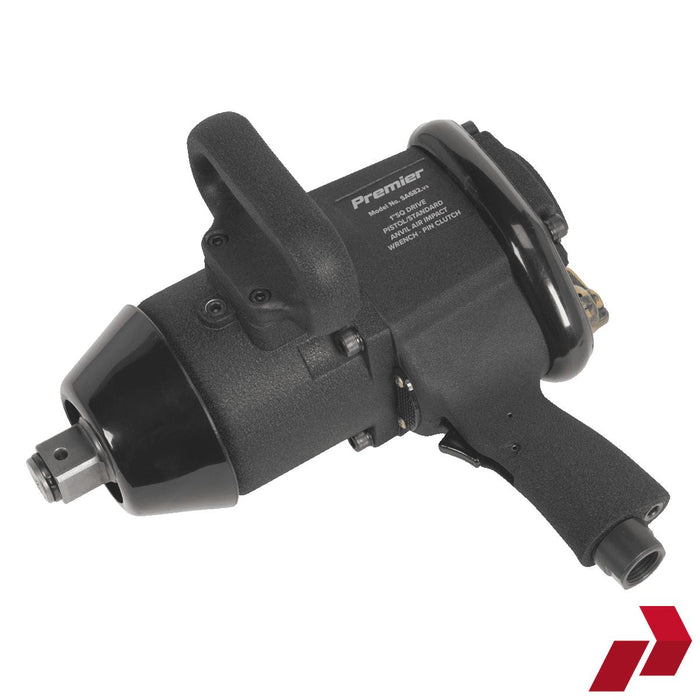

1" Square Drive Pin Clutch Air Impact Wrench

The 1" Square Drive Pin Clutch Air Impact Wrench is a high-performance tool designed for commercial and agricultural vehicle use. Featuring a pin clutch mechanism, it provides an excellent power-to-weight ratio, delivering impressive torque. The four-position torque control with reverse enhances versatility, and the tool is supplied with a side handle and spring balance hoop for added control and convenience during use.

Key Features

• High power-to-weight ratio: The pin clutch design ensures efficient performance with reduced weight.
• Four-position torque control: Offers versatility with adjustable torque settings and reverse functionality.
• Side handle and spring balance hoop: Provides better control and balance during operation.
• Commercial and agricultural vehicle use: Ideal for heavy-duty applications in commercial and agricultural settings.

Specifications

• Air Consumption: 5.5 cfm
• Breakaway Torque: 1800 lb (2448 Nm)
• Drive: 1 inch square
• Free Speed: 4280 rpm
• Inlet Size: ½” BSP
• Maximum Torque: 1600 lb (2176 Nm)
• Net Weight: 10.3 kg
• Noise Power/Pressure: 98/87 dB(A)
• Operating Pressure: 90 psi
• Vibration/Uncertainty: 5.9/2.36 m/s²
